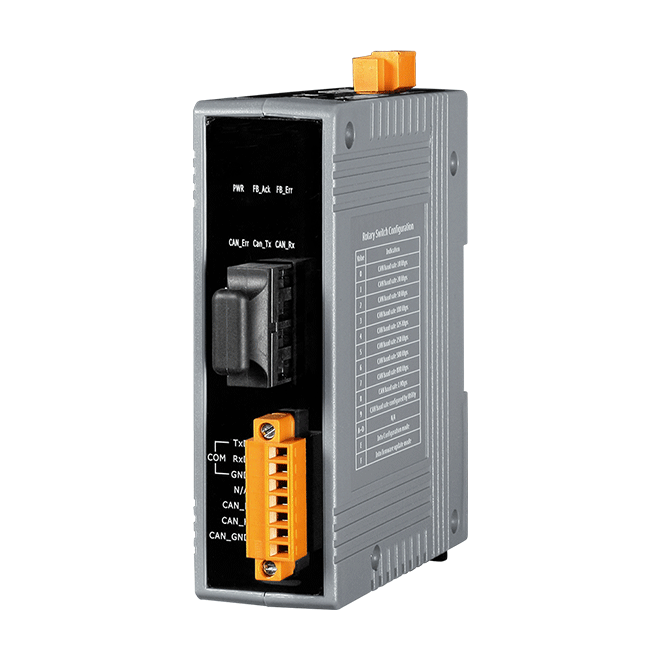

I-2533CS

CAN to Single-mode Fiber Bridge

Features

Fiber Type: SC ; Single mode ; 100 Base-FX
Maximum transmission distance up to 30 km at any CAN baud rate
NXP TJA1042 CAN transceiver
2500 Vrms isolation on the CAN side
Supports both CAN 2.0A and CAN 2.0B
Fully compatible with the ISO 11898-2 standard

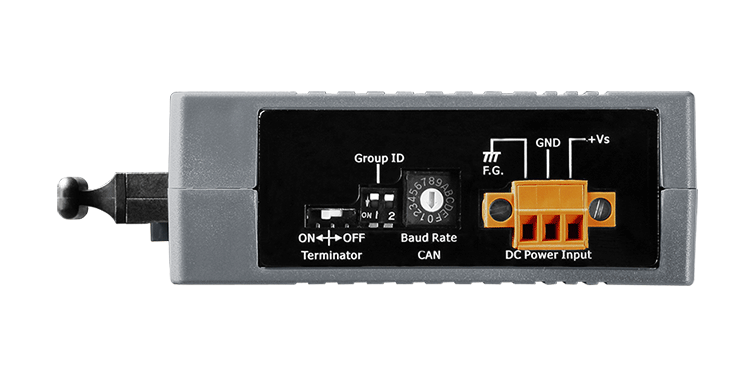

Rotary switch for CAN baud rate configuration
Build-in switch for 120 Ω terminal resistor
Removable terminal block, Mount easily on DIN-Rail
Allows user-defined CAN baud rate
Fiber broken line detection
Utility tool for CAN message filter configuration
The CAN port with the same Group ID can communicate with each other

Introduction

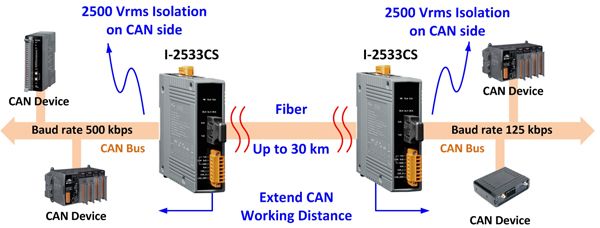

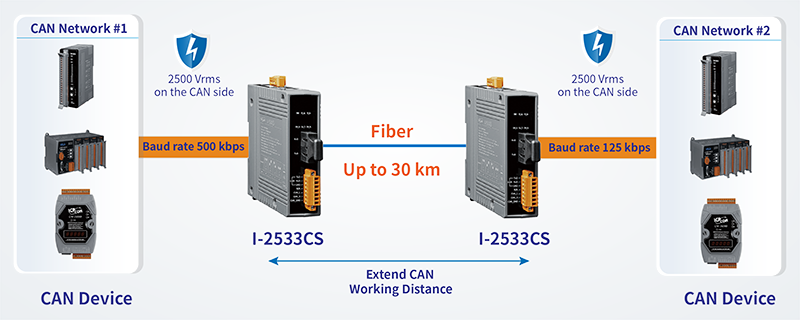

The I-2533CS is a local CAN bridge used to establish a connection between two CAN bus system via single mode fiber optic transmission medium. In order to solve the problem between CAN and fiber transmission medium, the I-2533CS is specially designed for converting the electrical CAN bus signal to fiber optic cables. I-2533CS has three more important features. First, the transmission distance limitation of the CAN bus system will not affected due to the different CAN baud rate. It means that the total CAN bus working distance can be extended. Second, the bus error on one CAN network will not affect the operation of another CAN network. Finally, the two CAN network can communication with each other by using different CAN baud rate for highly flexibility.

Applications


	Remotely Operated underwater Vehicle system( Traditional Chinese) Remotely Operated underwater Vehicle system( English )

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-2533CS CR	DESCRIPTIONCAN to Single-mode Fiber Bridge; 1 (30 km) single-mode, SC connector (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

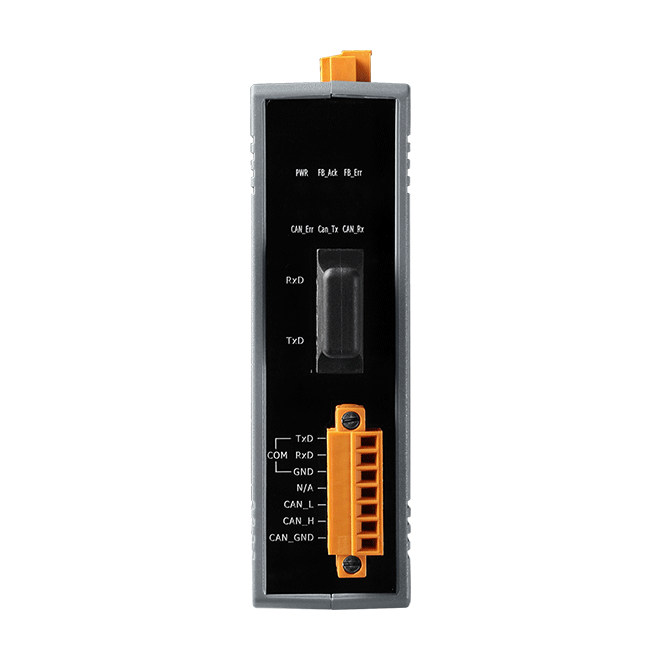

LED Indicators
Status	1 x Power 3 x CAN status 2 x Fiber status

COM Ports
Ports	1 x RS-232 (Utility Port)

Fiber
Ports	Single-Mode; SC Duplex connector x 1; 100 Base-FX
Fiber Cable	8.3/125, 8.7/125, 9/125 or 10/125 μm
Wavelength	1310 nm
TX Output	-15 dBmMin. , -8 dBm Max.
Transmission Distance	30 km (9/125 μm recommended)
RX Sensitivity	-34 dBm Max.
RX Overload	-5 dBm Max.
Budget	19 dBm
Propagation Delay	190 us (*Note1)

CAN
Ports	1
Specification	ISO 11898-2, CAN 2.0A and CAN 2.0B
Baud Rate	10 k ~ 1 M bps
Isolation	2500 Vrms on the CAN side
Terminal Resistor	Switch for 120Ω terminal resistor
Filter	Yes

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	3 W

Mechanical
Casing	Plastic
Dimensions (mm)	33 x 126 x 101 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Specification Memo

Note1: The propagation delay depends on the CAN Bus baud rate and the CAN message format. This value has been tested using a CAN baud rate of 1 Mbps, the CAN ID 0x12345678 and 8 bytes of data with a value of 0xFF.
